Detector Connecting Cover (Medical)

HOME > Case Studies > DETAILS
  • Detector Connecting Cover (Medical)

    Detector Connecting Cover (Medical)

    CATEGORY: Case Studies

    PUBLISH: 2019-01-14 09:42:32

    UPDATE: 2019-01-15 15:01:40

    VIEW: 337

    DETAILS

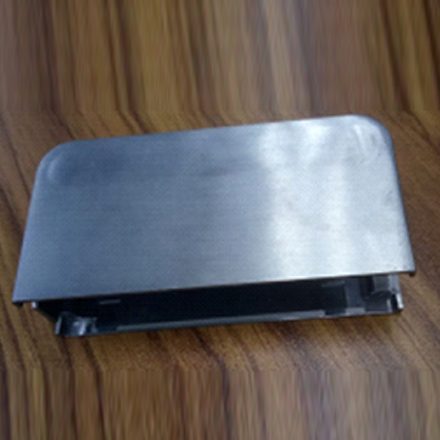

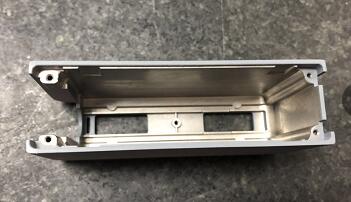

    Detector Connecting Cover (Medical)

    Service: Die Casting, Cutting, CNC Milling,

    De-burr, Polishing 180#, Nickel Plating, Painting, Inspection

    Materials: ADC12

    Q’ty: 1000 pcs

    The Project

    This is Project from a Well-known Medical firm who asked us to help them to expedite the lead-time as their previous vendor failed the project. They approached us as they do believe that we are more professional and reliable.

    The Product

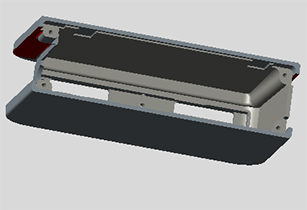

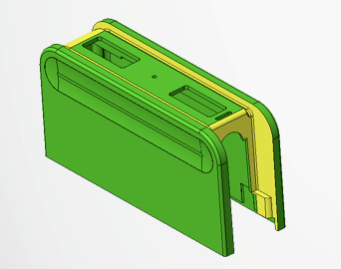

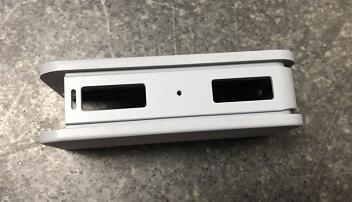

    This is the connecting cover for Detector which is very important to be assembled to a high-end Medical equipment from their Top Priority Project.

    The Product Developers

    Jerry Smith is a Design Team Leader of ABC Firm, He is an expert in Medical Equipment design and worked for many big project during his design life. He is friendly people passionate about Design.

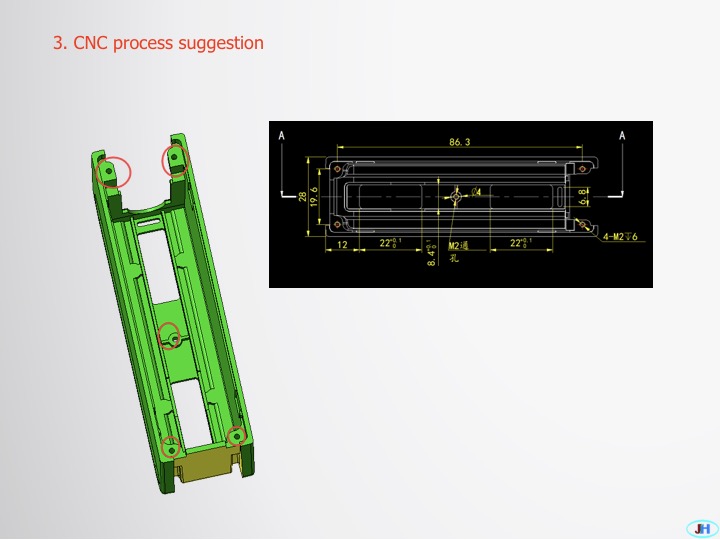

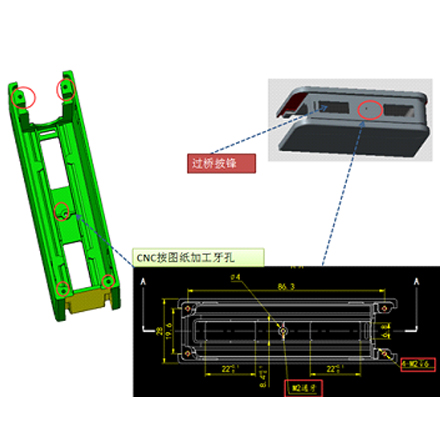

    Design for Manufacturing Review

    When working with Jerry Smith, the followingareas were discussed:

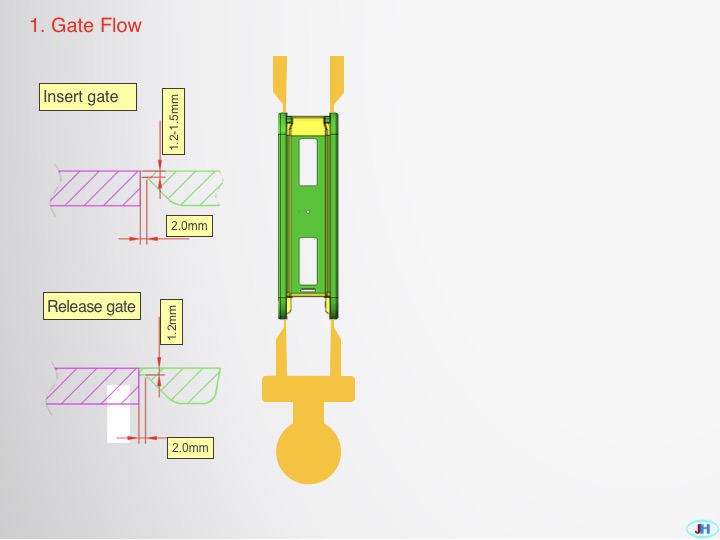

    #1 Design For Manufacturing Recommendation

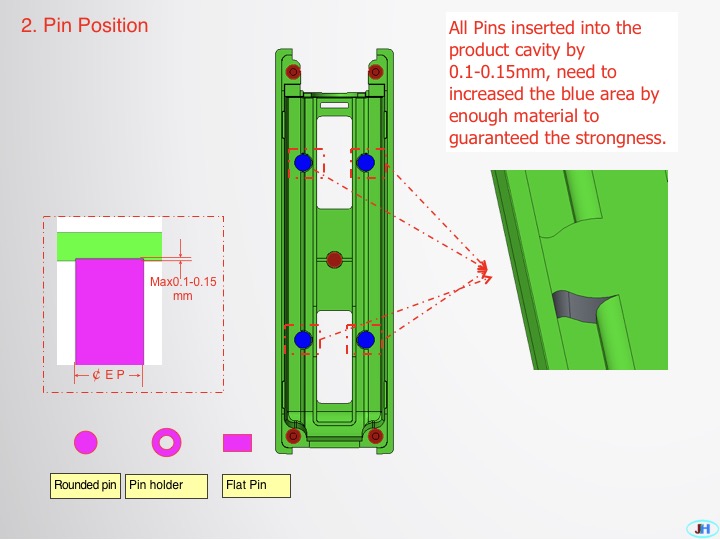

    #2 Design For Manufacturing Recommendation


    #3 Design For Manufacturing Recommendation


    Project Process Flow:

    1. Material Inspection

    2. Die-Casting

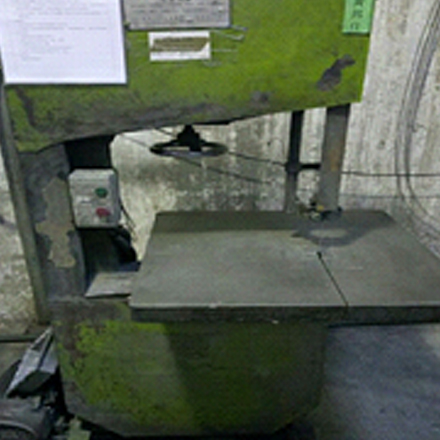

    3. Cutting

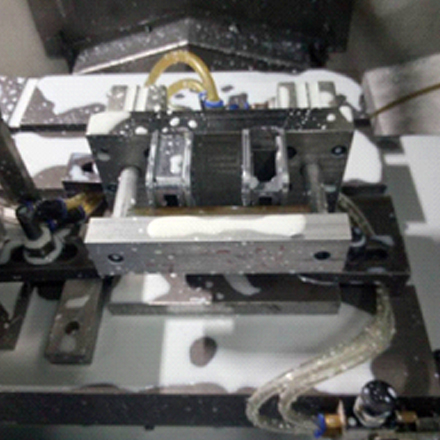

    4. CNC Milling



    5. De-burring




    6. Polishing by 180# sand paper

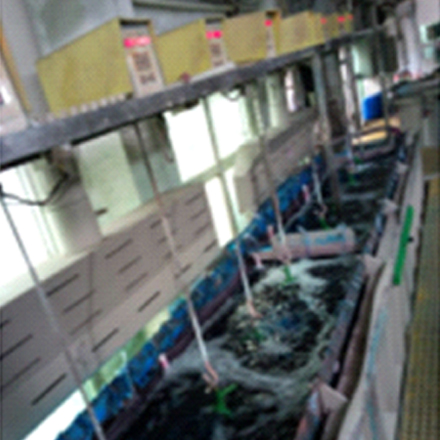

    7. Nickle Plating




    8. Painting

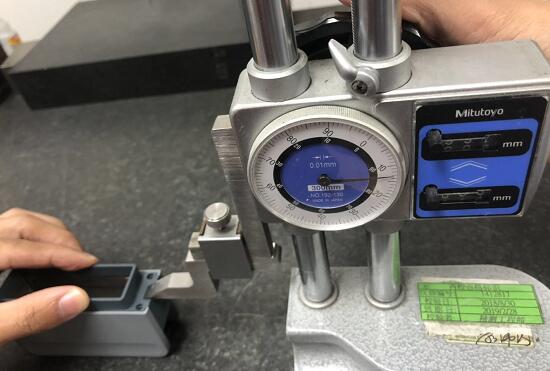

    9. Final Inspection by 3D Measurement
